» AHV400-6
Motor Type:

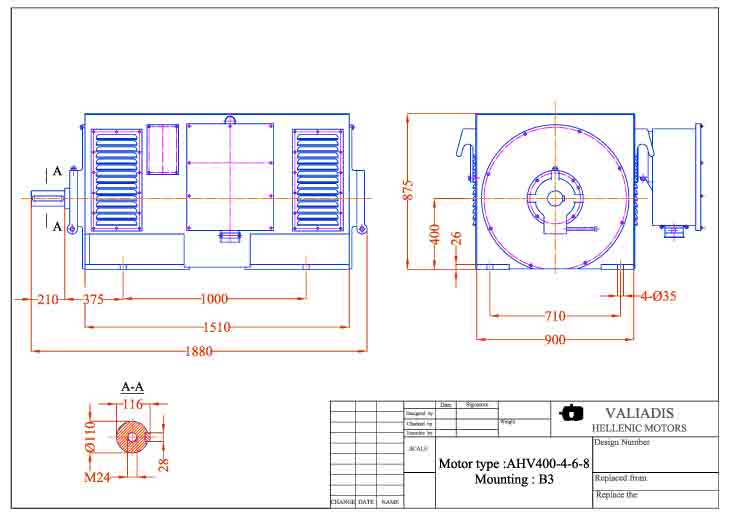

AHV400-6
Medium Voltage IC01/IP23
 Series: AHV • Frame: 400 • 6 Poles/985 RPM • 400.00kW/540.00hp • Mounting: B3 •
ManufacturerValiadis SA
FamilyAHV Series
Family / FrameAHV400
Rated / Power400.00 kW / 540.00 hp
Speed985 RPM
MountingB3
Voltage / Connection6,000-Y
Frequency50 Hz
Enclosure IP23
Full load current 0.00 A
Full load current0.00 A / 47.90 A
Insulation classF
Rotor current0.00

100%75%50%25%
Power factor0.85
Efficiency94.60
Moment of inertia20.0000
Torque3,878.00
Locked rotor torque / full load torque1.30
Pull out torque / full load torque2.90
Locked rotor current / full load current6.10
Bearing DE6324C3
Bearing NDE6324C3
Vibration0.00

Warranty12-18 months
Weight3,170.0
CodeAHV_6_000540.00_400_B3_1
100%75%50%25%
Power factor0.85
Efficiency94.60
